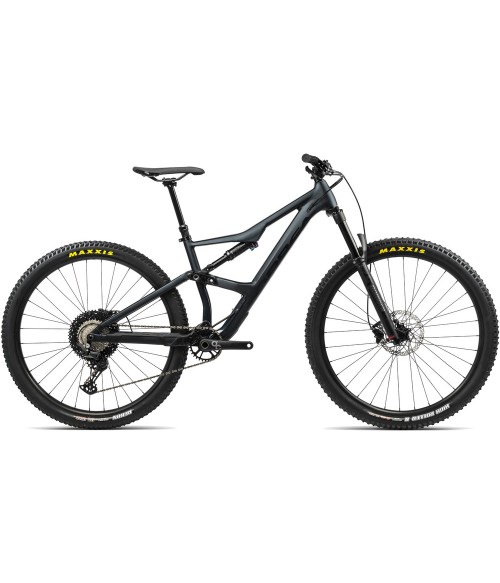

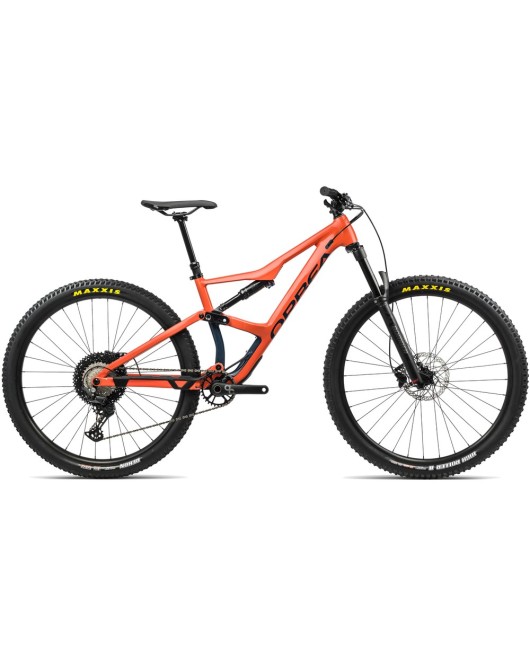

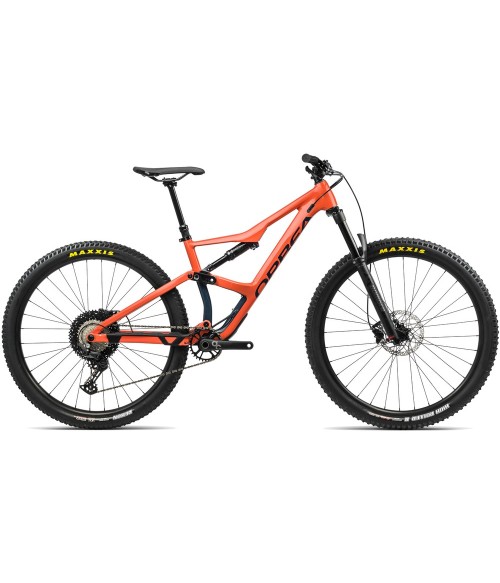

ORBEA OCCAM H30 MOUNTAIN BIKE 2021

Blending reactivity with composure thanks to its sophisticated alloy frame, plush suspension and accurate components, the Orbea Occam H30 full suspension mountain bike tackles and conquers any off-road trail scenario with consummate ease.

Light but strong and laterally stiff thanks to its triple-butted, hydroformed alloy composition, the frame acts as dependable, high performing cornerstone to the build. The front and rear triangles of the frame are linked via an asymmetrical configuration that reduces peak loads on the pivots and helps the FOX rear suspension unit to smoothly deliver cushioning across even the most rutted of tracks. Partnering the frame perfectly and affording greater levels of line precision and comfort is the Marzocchi Bomber Z2 fork and its 140mm of progressive suspension. The chassis adheres to Orbea’s Trail Geometry principle that equally donates stability and cornering nimbleness and positions the rider perfectly for power production.

Gear changing duties across a wide ranging cassette are completed with dependability by the Shimano Deore 12-speed set up while the hydraulic disc arrangement bestows powerful and modulated braking in any weather condition. Increased rolling momentum is provided naturally by the 29” Race face AR 30 alloy wheelset that is tough enough for the roughest of terrain. A dropper post crowns the spec sheet by infusing higher levels of confidence when charging down the most technical of routes.

HIGHLIGHTS

·         A multifaceted trail bike that’s great on the steepest climbs, capable on the trickiest descents and manoeuvrable on winding single track

·         Hydroformed, triple butted aluminium frame is light, stiff and incredibly strong

·         Asymmetrical rear shock linkage design reduces frame stress and improves suspension efficiency

·         FOX Float DPS Performance rear shock offers 140mm of travel to progressively manage impacts

·         Marzocchi Bomber Z2 fork uses its 140mm of suspension to increase line accuracy and control

·         Trail Geometry gives greater stability, composed cornering and efficient power transfer

·         Race Face AR 30 29” alloy wheelset is light but robust and rolls with greater momentum across the toughest of trail conditions

·         Shimano Deore 12-speed gears are crisp and durable

·         Shimano hydraulic disc brakes are powerful and precise in all trail conditions

·         Dropper post allows control on the fastest descents

SPECIFICATION

Frame

Orbea Occam Hydro High Polished 2020 Triple Butted Aluminium, 140mm travel, 29”, boost 12x148mm

Fork

Marzocchi Bomber Z2, 140mm travel, QR15x110mm

Rear Shock

Fox Float DPS Performance, 140mm travel, 3-Position Adjust Evol custom tune 210x50mm

Headset

FSA 1-1/8 - 1-1/2" Integrated

Stem

Orbea OC1 3D Forged 35mm interface 7-degree (Length

Handlebar

Orbea OC1 35mm diameter, 12mm rise, 780mm width

Front Brake

Shimano MT201, hydraulic disc

Rear Brake

Shimano MT201, hydraulic disc

Brake Levers

Shimano MT201, hydraulic disc

Rear Derailleur

Shimano Deore M6100 SGS Shadow Plus, 12-speed

Shift Levers

Shimano Deore M6100, 12-speed

Chain

KMC X12, 12-speed

Cassette

Sun Race, 10-51t, 12-speed

Crankset

Orbea OC1 alloy forged boost, 32 tooth chainring (Length

Front Wheel

Orbea OC1 29c tubeless-ready

Rear Wheel

Orbea OC1 29c tubeless-ready

Front Tyre

Maxxis High Roller II 2.50" FB 60 TPI Dual Exo, tubeless-ready

Rear Tyre

Maxxis Rekon 2.40" FB 60 TPI Dual Exo, tubeless-ready

 Saddle

Selle Royal 2043 HRN

Seatpost

Orbea OC2 Dropper 31.6mm diameter (Length

Pedals

Available to be purchased separately
