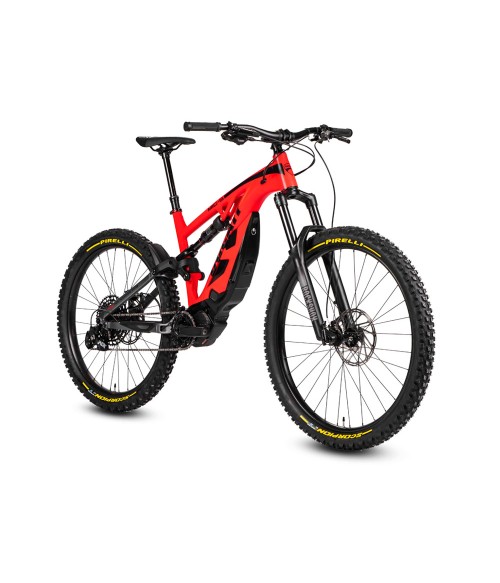

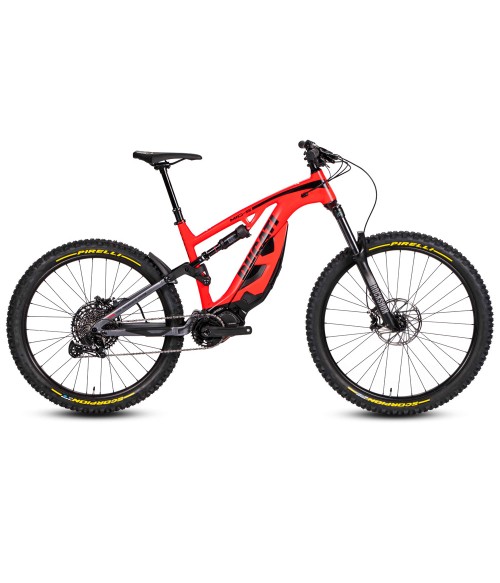

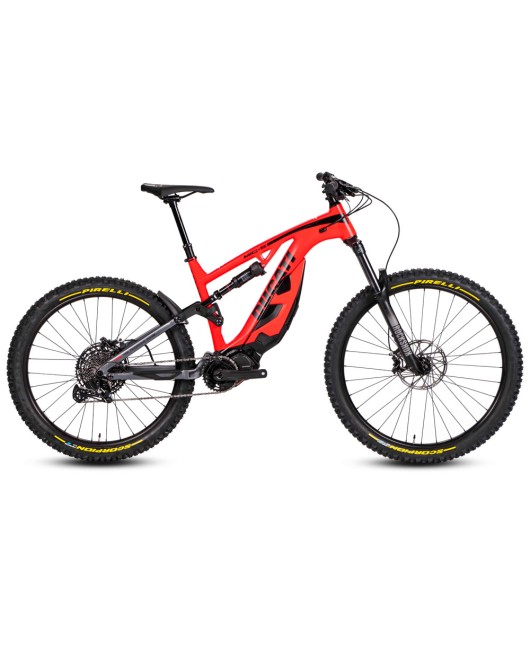

2022 DUCATI MIG-S MOUNTAIN BIKE

Shimano EP8 engine

A benchmark in the category thanks to its low weight of 2.6 kg, its compact size and a Q factor of only 177 mm. With a maximum torque of 85 Nm and an assistance ratio of up to 400%, this drive unit ensures great pedalling power with always fluid, direct and natural delivery, for complete control of the vehicle. Combined with the Shimano E-tube Project App, the EP8 system allows advanced levels of customization to adapt the character of the engine to your needs. All our e-mtb come with two pre-set profiles: "long ride" to favour long distances and "fast ride" for greater engine responsiveness.

Aluminium frame

Forged and CNC machined parts with variable thickness hydroformed tubes. The geometries of the frame, with a 66° head angle, an elongated top tube and a 74.7° vertical seat tube, ensure pedalling efficiency and control of the vehicle even on the most technical passages.

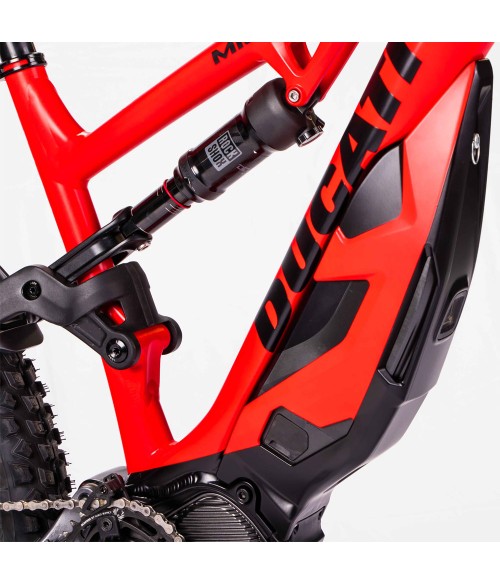

RockShox suspension

The new air suspensions (RockShox 35 RC fork and RockShox SuperDeluxe R shock absorber) are adjustable and have 150 mm of travel at the front and 140 mm at the rear, ideal for safely tackling any type of path and obstacle.

Main components

High-level like the KS dropper post with remote handlebar control, the powerful and modular SRAM Guide T 4-piston brakes and the SRAM NX 12-speed rear derailleur (11-50T) that ensure great performance and safety in all conditions.

Low centre of gravity

The 630Wh battery positioned below the down tube, as well as being quick and easy to remove, ensures a very low centre of gravity, maximizing handling and stability.

Tyres and rims

Differentiated Thok e-plus rims with Pirelli Scorpion Enduro S 29" x 2.6 SmartGrip Hyperwall tyres at the front and Pirelli Scorpion E-MTB S 27.5" x 2.6 at the rear. They allow you to overcome the most difficult of obstacles with momentum and always have maximum grip on any terrain.

KEY FEATURES

• FRAME Alloy frame 6061 forged and CNC parts, hydroformed tubes

• ENGINE Shimano Steps EP8 (250 Watt – 85 Nm - 2.6 kg)

• BATTERY Shimano – 630 Wh (semi-integrated)

• FORK Front: RockShox 35 RC Air, 150 mm travel, custom tuned

• REAR SHOCK Rear: RockShox Deluxe Select R air, 140 mm travel, custom tuned, metric 210 x 55 mm

• BRAKES Sram Guide T - 4 calipers – 203 mm rotor

• REAR DERAILLEUR SRAM NX 12 speed (11-50)

SPECIFICATION :
