Description

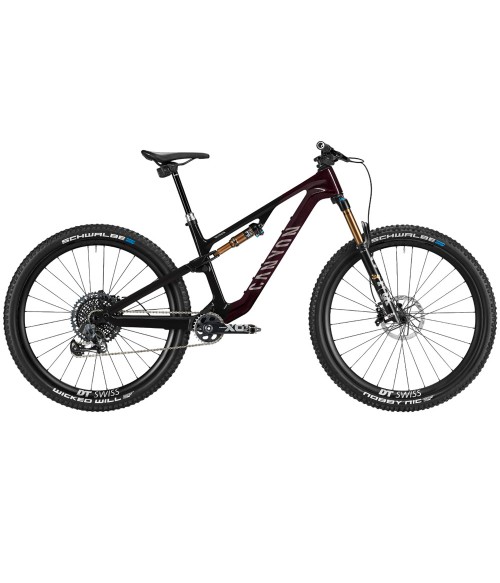

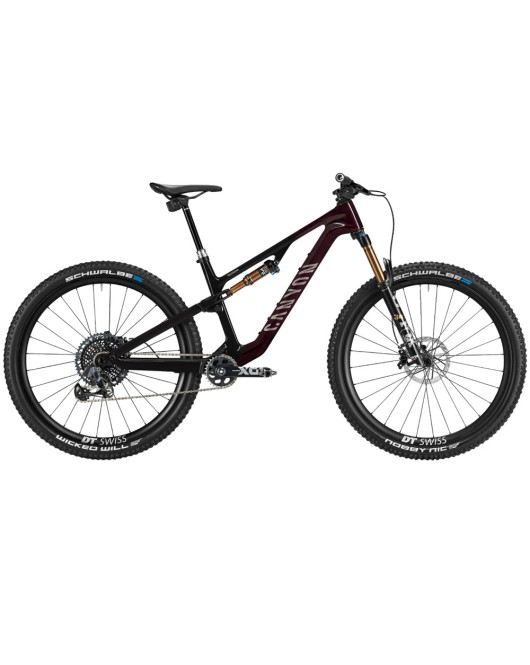

2023 CANYON NEURON CF LTD MOUNTAIN BIKE

Triple Phase Suspension

Triple Phase Suspension delivers incredible control and feel on the trail. Small-bump sensitivity for huge traction. Mid-stroke stability for speed and momentum. And on big hits the suspension ramps up progressively to avoid bottoming out.

Clean and simple internal cable routing

The Neuron CF has internal cable routing for a more elegant look. But it’s not just about style: pre-installed internal liners make cable installation simpler too. Push the cable through and hey presto, it comes out the other end. The design minimises internal bending and to protect the inside of the frame from mud all entry points are sealed.

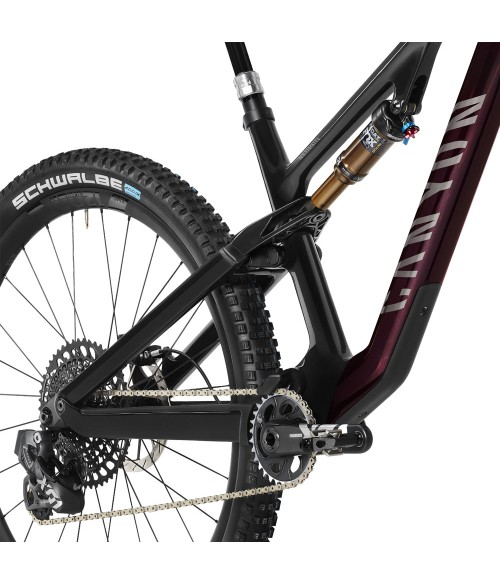

Integrated chainstay protection and chain guide

Your chain will stay secure on the roughest trails thanks to the Neuron CF’s cleanly integrated chain guide. Plus a chainstay protector keeps the frame in pristine condition and also eliminates annoying chain slap noises thanks to its special noise-dampening rubber compound. The guide and protectors are both adjustable to work with chainring sizes 28-34T.

A quick-release through axle

Get the best of all worlds with the Quixle through-axle. Precise handling, thanks to the stiffness of a through-axle. And rapid wheel removal, with the speed and ease you normally only get from a quick release. The handle tucks away neatly for tool-free removal.

SPECIFICATION :

Frame	Canyon Neuron Axle dimension: 12x148 mm Material: Carbon (CF)
Rear Shock	FOX Float DPS Factory
Suspension Fork	FOX 34 Float Factory FIT4 Axle dimension: 15x110 mm Stanchion Diameter: 34 mm Travel: 140 mm Fork steer tube diameter: 1 1/8" - 1,5" Offset: 44 mm
Battery	SRAM Powerpack
Rear Derailleur	SRAM X01 Eagle AXS
Chainguard	Canyon EP1538-01 Chain Guide
Shift Lever	SRAM Eagle AXS
Cassette	SRAM XG-1295 Number of sprockets: 12
Crank	SRAM X01 EAGLE Number of chainrings: 1
Bottom bracket	SRAM BSA DUB Bottom bracket standard: BSA 73
Chain	SRAM X01 Eagle 12s
Disc Brake	SRAM Matchmaker Clamp
Disc Brake	SRAM Code RSC
Disc Brake	SRAM Code RSC
Brake Rotor	SRAM HS2 Size: 180 mm
Wheel	DT Swiss XMC1200 29" Axle dimension: 15x110 mm Rotor mount: IS 6-bolt Inner width: 30 mm Wheelsize: 29"
Wheel	DT Swiss XMC 1200 XD Axle dimension: 12x148 mm Rotor mount: IS 6-bolt Inner width: 30 mm Wheelsize: 29"
Tyre	Schwalbe Nobby Nic 29x2.4 black skin Width: 2.4"
Tyre	Schwalbe Wicked Will 29"x2.4" Width: 2.4"
Thru Axle	Canyon Quixle Thru Axle Axle dimension: 12x148 mm
Stem	Race Face Turbine R Fork steer tube diameter: 1 1/8"
Handlebar	Race Face Next 35 Clamping diameter: 35,0 mm Width: 760 mm Rise: 20 mm
Grips	Ergon GA20
Saddle	Ergon SM10 Sport Men Gender: Male
Seatpost	RockShox Reverb AXS Clamp diameter: 30,9 mm Material: Aluminium (AL)
Light	Reflector Set
Pedals	None included
Manuals and Accessories	Canyon Small Box
Manuals and Accessories	Canyon Instruction SRAM ETP
Manuals and Accessories	Canyon Smallbox
