Description

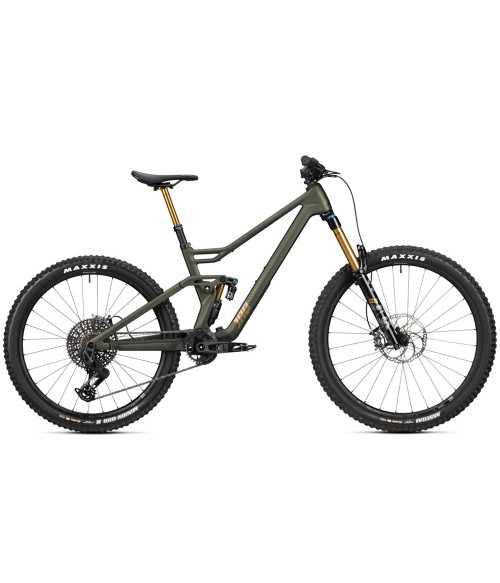

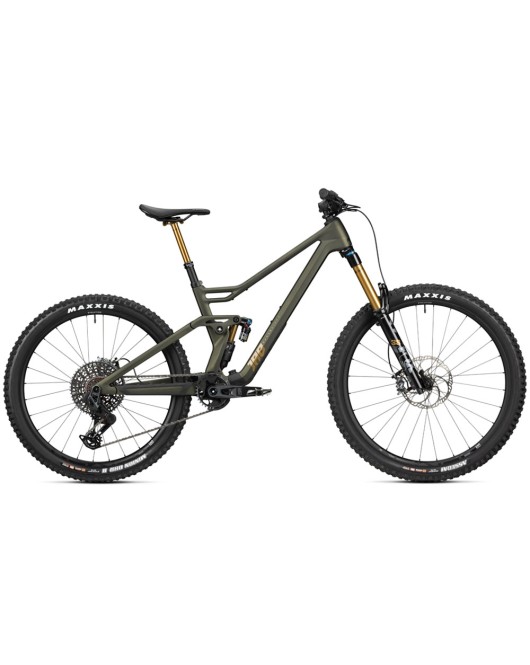

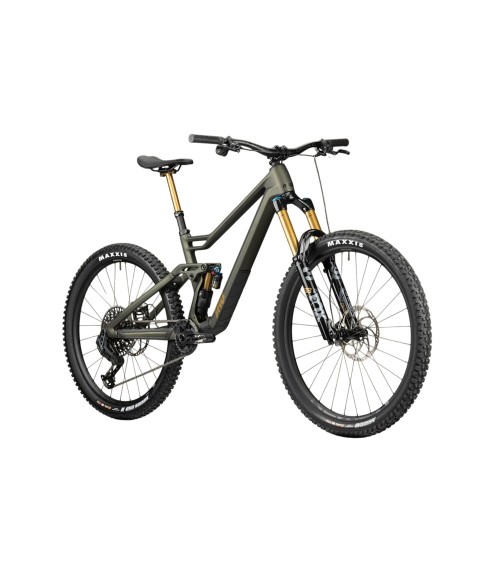

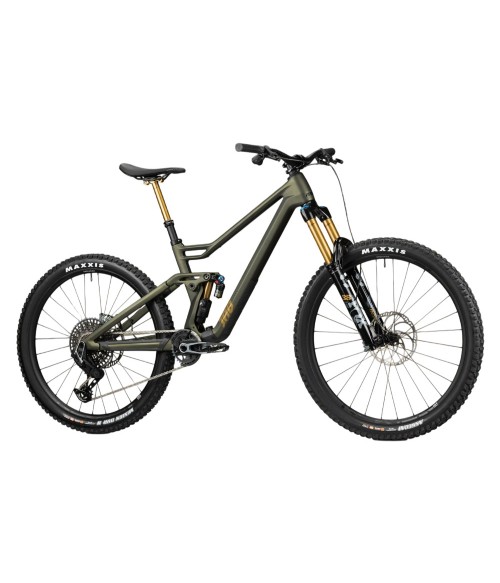

2025 RADON JAB MX 10.0 HD MOUNTAIN BIKE

Dreams come true with the JAB MX 10.0 HD! It's not just the spec that we've gone one better on the HD version - we've also given the JAB MX 10.0 HD more travel at the front to tease out that last bit of performance on the descents. With 170 mm of travel, the Fox 38 Factory with FIT GRIP2 cartridge and elegant Kashima coating is not only visually impressive - you also get the flagship from Fox in terms of technology. With the finely adjustable GRIP 2 cartridge, you can set the HSC (High-Speed Compression) and LSC (Low-Speed Compression) separately and, in conjunction with the optically integrated Fox Float X2 Factory, optimize the suspension for any terrain. With the Newmen Evolution SL A.30 wheelset, you get the favorite of our test riders: a quiet FADE hub, 30 mm rim width and a modern rim profile offer you the perfect basis for the tires. Here we rely on Maxxis Assegai and Minion DHR II with soft 3C MaxxTerra rubber compound and EXO+ carcass for optimum grip on your favorite trail.

The drivetrain couldn't be more modern: With the brand-new SRAM Eagle Transmission with parts from the GX and X01 series, you not only have a super-clean cockpit thanks to the wireless AXS POD controller - the crisp gear changes will also win you over in no time. With so many downhill-heavy parts, a proper braking system must also be on board: This is where the flagship Magura MT7 with four pistons at the front and rear does its job. Targeted braking before the next turn, emergency braking at key points or easily controlled braking actions - all no problem for one of the most powerful brakes on the market. With so many highlights, it's easy to overlook the fact that the visually matching Fox Transfer Dropper is also included as standard and that your future cockpit will be made up of high-quality Race Face Turbine R parts. The JAB MX 10.0 HD - a dream come true!

Highlights

• Fox 38 Factory FIT GRIP2 fork

• Fox X2 Factory 2-Pos. EVOL LV rear shock

• Newmen Evolution SL A.30 wheelset

• Magura MT7 brakes

SPECIFICATION :

FRAME	JAB MX • Material: Full carbon main frame and rear triangle • Max. width tire: 27.5", 2.4" • Angle headset for geometry adjusting • Derailleur hanger: UDH
Fork	Fox 38 Factory, FIT GRIP2, Kashima, Boost • Rake: 44mm
Rear suspension	Fox Float X2 Factory, 2-Pos., EVOL LV, Kashima • Size: 205 x 60mm • Bushing size: top: Trunnion, bottom: 8 x 30mm
Travel fork	170mm
Travel rear	160mm
Wheelset	Newmen Evolution SL A.30, 110/148mm
Brakes	Magura MT7
Brake discs	Magura Storm HC, 203/203mm, 6-bolt
Crank	SRAM X0 Eagle Transmission, DUB, 32T, Boost, 170mm
Inner bearing	SRAM DUB WIDE, Pressfit, 92mm
Shifters	SRAM AXS POD Controller, Shiftmix
Rear derailleur	SRAM X0 Eagle Transmission, 12-speed
Cassette	SRAM GX Eagle Transmission XS-1275, 10-52
Chain	SRAM GX Eagle Transmission Flattop
Handlebar	Race Face Turbine R, 35 x 800mm, 35mm rise
Stem	Race Face Turbine R, Ø35mm • S: 40mm • M: 40mm • L: 50mm • XL: 50mm
Headset	Acros Angleset, ZS56/ZS56 • Internal cable routing
Grips	SDG Thrice
Seatpost	Fox Transfer Factory, Kashima, Ø30.9mm • S: 125mm travel • M: 150mm travel • L: 150mm travel • XL: 150mm travel
Saddle	SDG Bel Air V3, Lux alloy
Front tire	Maxxis Assegai 3C, MaxxTerra, EXO+, TR, 29" x 2.5" WT
Rear tire	Maxxis Minion DHR II 3C, MaxxTerra, EXO+, TR, 27.5" x 2.4" WT
Color	Swamp / Deepblack
Weight	14.25 kg*
Frame sizes	S, M, L, XL
Pedals	not included
Permissible total weight	115 kg

2025 Radon JAB MX 10.0 HD Mountain Bike

Product Code: R30105
