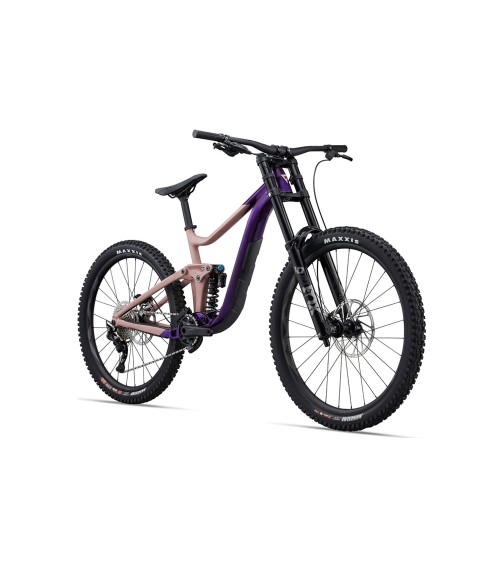

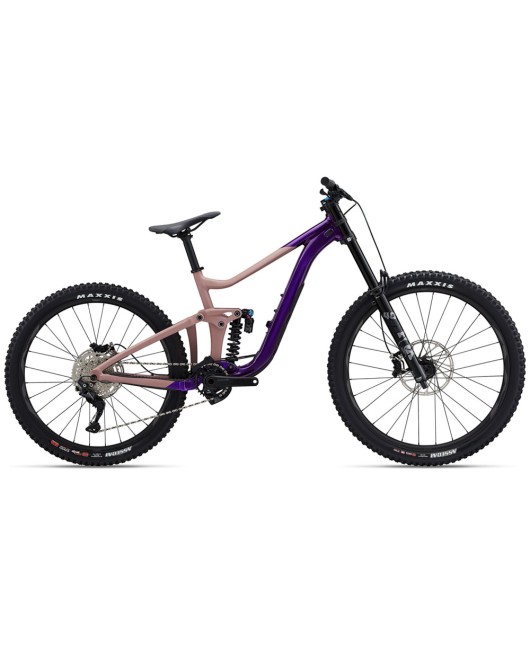

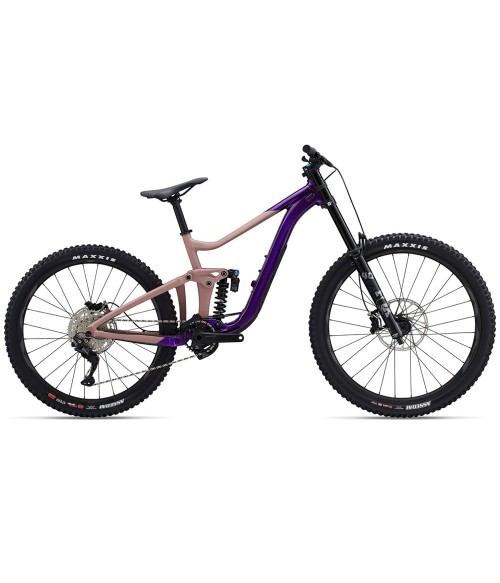

2023 GIANT REIGN SX MOUNTAIN BIKE

KEY PERFORMANCE FACTORS

Race-bred suspension

The Maestro rear suspension eats up enduro terrain with 165mm of smooth, active rear travel matched with a 190mm travel fork. The trunnion mount rear shock has a longer stroke (65mm over 60mm on the previous generation) while the Advanced Forged Composite upper rocker arm adds stiffness and lowers overall frame weight.

Adjustable enduro geometry

New flip chip feature lets you adjust frame geometry depending on the terrain. You can select a 63.1 or 63.5-degree head angle and corresponding 77.9 or 78.3-degree seat tube angle, resulting in a 25 or 19mm bottom bracket drop (size medium) to fine-tune handling for varying trail conditions and riding style.

Mixed wheel size

A 29-inch front wheel provides speed, stability and front-end control on rough, technical trails. A 27.5-inch rear wheel adds agility and maneuverability to help riders rail corners, pop over features and show off their style.

SPECIFICATION

Sizes	M, L,
Colours	Gloss Purple/Matte Petra Clay
Frame	ALUXX SL-Grade Aluminum front and rear triangles, Advanced Forged Composite rocker link, 165mm Maestro suspension, OverDrive (1 1/8" - 1 1/2"), BB89.5, UDH, 12x148mm thru-axle, 27.5-inch rear wheel dedicated, flip chip - Maestro 3, integrated downtube storage, 2.5" max tyre size, 36t max chainring size, 3M tailgate protector, downtube and chainstay protection
Fork	Fox 40 Performance, GRIP damper, 190mm, 20x110
Shock	Fox DHX2 Performance Elite, 205/65 M:400lbs, L:450lbs
Handlebar	Giant Contact SL TR35, 800x35mm, 20mm rise
Grips	Giant Tactal Pro Single M:120mm, L:130mm
Stem	TruVativ Descendant Direct Mount 35, 50mm
Seatpost	Giant Contact, 30.9mm, 400mm
Saddle	Giant Romero
Pedals	N/A
Shifters	Shimano Deore SL-M4100, 1x10
Front Derailleur	N/A
Rear Derailleur	Shimano Deore RD-M5120
Brakes	SRAM Code R, hydraulic, CenterLine rotors [F]220mm, [R]203mm
Brake Levers	SRAM Code R
Cassette	Shimano Deore M4100, 11x-46T
Chain	KMC X10, w/ Missing Link
Crankset	Praxis Cadet M24, 32t, 165mm, 55mm chainline
Bottom Bracket	Praxis, press fit
Rims	[F] Giant AM 29, ETRTO: 30-622, tubeless ready (TL tape and valve included), alloy [R] Giant AM 27.5, ETRTO: 30-584, tubeless ready (TL tape and valve included), alloy
Hubs	Alloy, sealed [F] Giant, cartridge bearing, 6-bolt [R] Giant, cartridge bearing, 6-bolt
Spokes	Sapim Leader
Tyres	[F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, EXO+, TR [R] Maxxis Minion DHR II 27.5x2.5 WT, 3C MaxxTerra, DD, TR tubeless
Extras	Factory tubeless set up. Tubeless kit (2x60ml Giant sealant, valve tool, instruction) 2.5" max tyre size, 36t max chainring size, MRP AMG CS chain guide, 3M tailgate protector, downtube and chainstay protection, internal DT storage bag
Weight	The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
