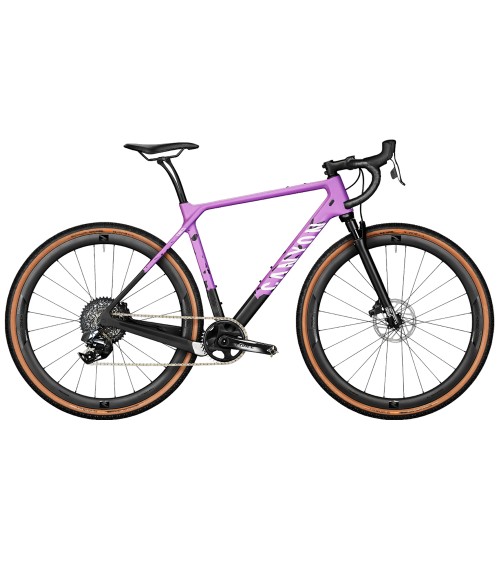

2022 Canyon Grizl CF SLX 8 eTap Suspension Road Bike

Description

2022 CANYON GRIZL CF SLX 8 ETAP SUSPENSION ROAD BIKE

Functional cockpit

The appearance of the Grizl reflects Canyon's functional, clean design language. Clear, logical lines and balanced proportions create a classic-yet-modern aesthetic.

50 mm tyre clearance

We developed the frame to provide 50 mm of tyre clearance with 700C wheels (45 mm with fenders). For this we had to push the boundaries in many areas, like with the dropped drive-side chainstay. It is extremely thin while still providing structural support and internal cable routing.

SPECIFICATION :

Frame	Canyon Grizl CF SLX Superlight frame that combines outstanding utility, versatility, and performance. Tyre clearance: 50 mm. Gravel Pro geometry for off-road stability & agility. Dropper post and suspension fork compatibility. 12 x 142 mm through axle. Weight: 955 g (size M). Superlight frame that combines outstanding utility, versatility, and performance. Tyre clearance: 50 mm. Gravel Pro geometry for off-road stability & agility. Dropper post and suspension fork compatibility. 12 x 142 mm through axle. Weight: 955 g (size M).
Suspension Fork	Rock Shox Rudy Ultimate Axle dimension: 12x100 mm Stanchion Diameter: 30 mm Travel: 30 mm Fork steer tube diameter: 1 1/4"
Battery	SRAM Powerpack
Rear Derailleur	SRAM Force XPLR eTap AXS
Cassette	SRAM Force XPLR XG-1271, 12-speed, 10-44 Number of sprockets: 12

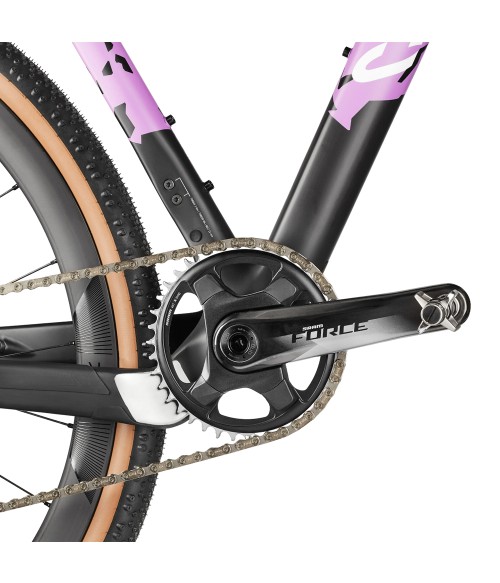

Crank	SRAM Force 1 40T, 12-speed Number of chainrings: 1
Bottom bracket	SRAM Pressfit RED DUB Bottom bracket standard: PF 86,5
Chain	SRAM FORCE D1 12-speed
Shift-/ Brake Lever	SRAM Force eTap AXS HRD 2s
Shift-/ Brake Lever	SRAM Force eTap AXS HRD 12s
Brake Rotor	SRAM Centerline Rounded Size: 160 mm
Wheel	Reynolds ATR Rotor mount: Center Lock Wheelsize: 28"
Wheel	Reynolds ATR XDR Rotor mount: Center Lock Wheelsize: 28"
Tyre	Schwalbe G-One Bite 45mm Width: 45mm
Thru Axle	Canyon Thru Axle Axle dimension: 12x142 mm
Stem	Canyon V13 High-quality aluminium stem with square cross-sectional profile. A new handlebar clamp design increases torsional stiffness by up to 40%. Handlebar clamp diameter: 31.8 mm. Head tube diameter: 1 1/4". Fork steer tube diameter: 1 1/4" Clamping diameter: 31,8 mm

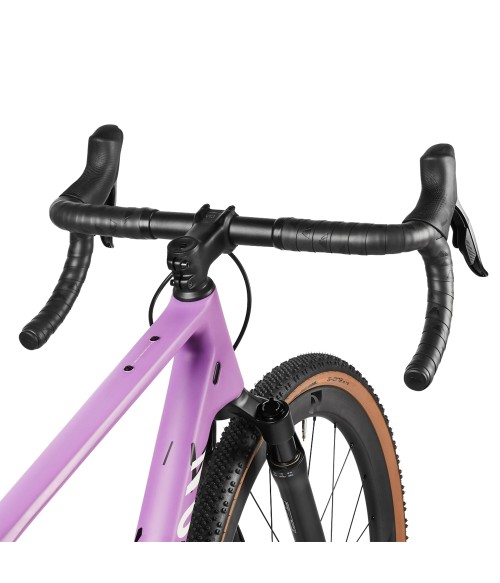

Handlebar	Canyon HB0063 Clamping diameter: 31,8 mm Width: 440 mm
Handlebar Tape	Canyon Ergospeed Gel Color: black
Saddle	Fizik Argo Terra X5
Seatpost	Canyon S15 VCLS 2.0 CF Material: Carbon Setback: 13 mm / 25 mm Technology: VCLS 2.0 \| Fliphead Weight: 220 g
Light	Reflector Set
Pedals	None included
Manuals and Accessories	Canyon Small Box
Manuals and Accessories	Canyon Shock Pump
Manuals and Accessories	BAG REY Acc Assault LE 21C C DB
Manuals and Accessories	Canyon Instruction SRAM ETP
Manuals and Accessories	Canyon starter box
Manuals and Accessories	Canyon Quick Start Guide

2022 Canyon Grizl CF SLX 8 eTap Suspension Road Bike

Product Code: CY654441

Description
Reviews

2022 CANYON GRIZL CF SLX 8 ETAP SUSPENSION ROAD BIKE

Functional cockpit

The appearance of the Grizl reflects Canyon's functional, clean design language. Clear, logical lines and balanced proportions create a classic-yet-modern aesthetic.

50 mm tyre clearance

SPECIFICATION :

Frame	Canyon Grizl CF SLX Superlight frame that combines outstanding utility, versatility, and performance. Tyre clearance: 50 mm. Gravel Pro geometry for off-road stability & agility. Dropper post and suspension fork compatibility. 12 x 142 mm through axle. Weight: 955 g (size M). Superlight frame that combines outstanding utility, versatility, and performance. Tyre clearance: 50 mm. Gravel Pro geometry for off-road stability & agility. Dropper post and suspension fork compatibility. 12 x 142 mm through axle. Weight: 955 g (size M).
Suspension Fork	Rock Shox Rudy Ultimate Axle dimension: 12x100 mm Stanchion Diameter: 30 mm Travel: 30 mm Fork steer tube diameter: 1 1/4"
Battery	SRAM Powerpack
Rear Derailleur	SRAM Force XPLR eTap AXS
Cassette	SRAM Force XPLR XG-1271, 12-speed, 10-44 Number of sprockets: 12
Crank	SRAM Force 1 40T, 12-speed Number of chainrings: 1
Bottom bracket	SRAM Pressfit RED DUB Bottom bracket standard: PF 86,5
Chain	SRAM FORCE D1 12-speed
Shift-/ Brake Lever	SRAM Force eTap AXS HRD 2s
Shift-/ Brake Lever	SRAM Force eTap AXS HRD 12s
Brake Rotor	SRAM Centerline Rounded Size: 160 mm
Wheel	Reynolds ATR Rotor mount: Center Lock Wheelsize: 28"
Wheel	Reynolds ATR XDR Rotor mount: Center Lock Wheelsize: 28"
Tyre	Schwalbe G-One Bite 45mm Width: 45mm
Thru Axle	Canyon Thru Axle Axle dimension: 12x142 mm
Stem	Canyon V13 High-quality aluminium stem with square cross-sectional profile. A new handlebar clamp design increases torsional stiffness by up to 40%. Handlebar clamp diameter: 31.8 mm. Head tube diameter: 1 1/4". Fork steer tube diameter: 1 1/4" Clamping diameter: 31,8 mm
Handlebar	Canyon HB0063 Clamping diameter: 31,8 mm Width: 440 mm
Handlebar Tape	Canyon Ergospeed Gel Color: black
Saddle	Fizik Argo Terra X5
Seatpost	Canyon S15 VCLS 2.0 CF Material: Carbon Setback: 13 mm / 25 mm Technology: VCLS 2.0 \| Fliphead Weight: 220 g
Light	Reflector Set
Pedals	None included
Manuals and Accessories	Canyon Small Box
Manuals and Accessories	Canyon Shock Pump
Manuals and Accessories	BAG REY Acc Assault LE 21C C DB
Manuals and Accessories	Canyon Instruction SRAM ETP
Manuals and Accessories	Canyon starter box
Manuals and Accessories	Canyon Quick Start Guide

Brand: Canyon
Product Code: CY654441
Availability: In Stock
