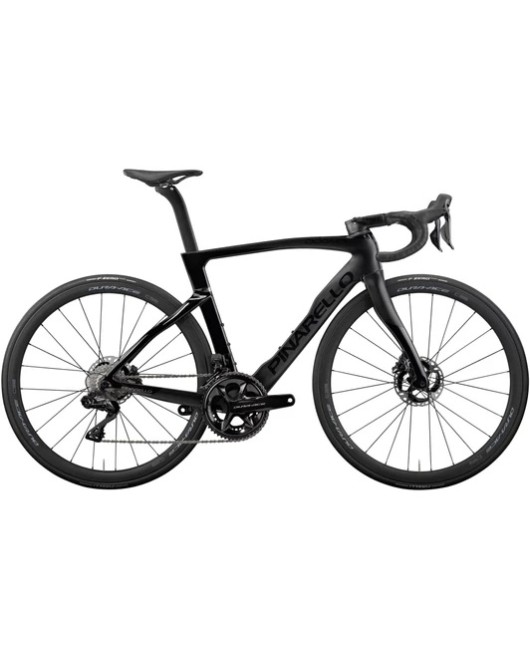

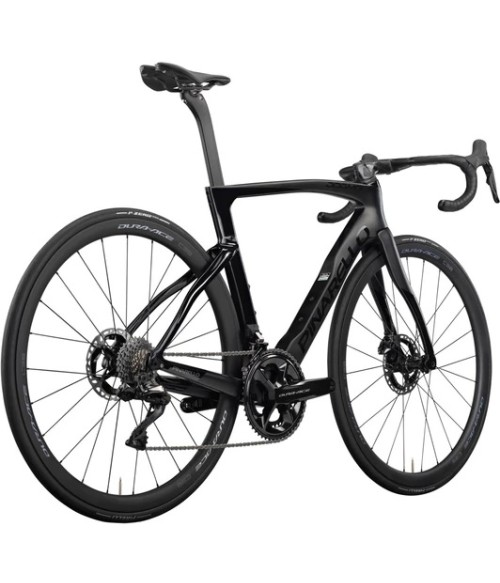

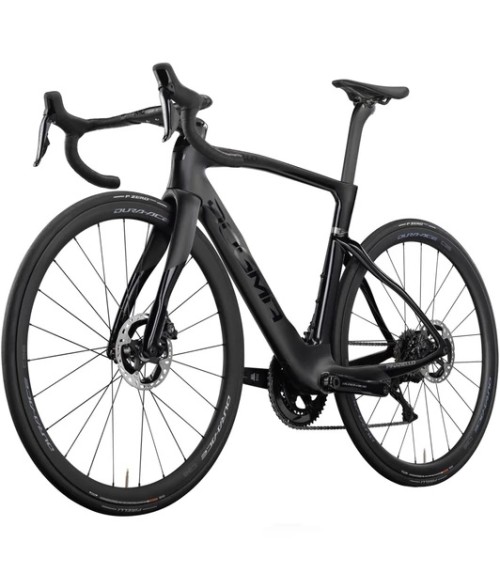

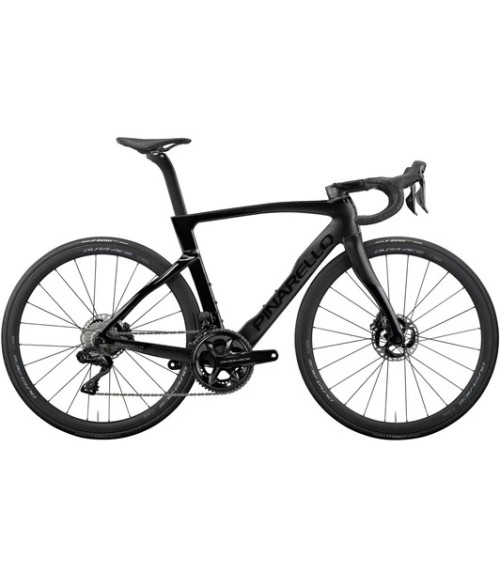

2025 Pinarello Dogma F Dura-Ace Di2 R9270 Fulcrum Speed Lite Disc Road Bike

One of the most successful models in recent years if measured by professional race wins, the Pinarello Dogma F Dura-Ace Di2 R9270 Fulcrum Speed Lite Disc Road Bike offers superlative performance, whatever the parcours.

The distinctively shaped carbon frame perfectly balances low weight, stiffness and aerodynamics, making it a very useful ally and formidable opponent, whether racing at the top level or simply enjoying a fast ride with friends. The tubes have a truncated aerofoil shape to help the bike slip through the wind, with a concave downtube that shields the water bottle area from the wind. TiCR cable routing keeps the cables inside the frame for less drag and a cleaner look whilst the Onda ForkFlap similarly shelters the front caliper.

Shimano’s range-topping Dura-Ace Di2 groupset is the pinnacle of road bike shifting and braking. Servo Wave technology from their mountain bike lineup provides more brake pad clearance so there is less chance of unwanted rotor contact along with improved modulation and power. Connection between the shifters and the frame’s wiring loom is now wireless for easier set-up, with lightning-quick shifts at just the lightest touch of the levers. Bluetooth connectivity allows the system to be paired with Shimano’s app for customisation options and also can provide a connection to a GPS head unit so that gear selection and battery levels can be displayed.

Low in both weight and drag, the Fulcrum SPEED Lite C40 carbon-rimmed wheels are fast on the flats and uphill, with the blunt 40mm profile ensuring that handling remains predictable in more blustery conditions. The wheels and Pirelli P ZERO Race tyres are tubeless ready, with Fulcrum’s 2-Way Fit offering compatibility with a wide choice of rubber.

Dogma F Dura-Ace 12 Highlights

• Pinarello Dogma F TorayCa T1100 1K Dream Carbon frame
• Pinarello Dogma F Onda Fork with ForkFlap
• Shimano Dura-Ace Di2 12-speed electronic groupset and hydraulic disc brakes
• Fulcrum SPEED Lite C40 carbon wheelset and Pirelli P ZERO Race tyres
• MOST finishing kit

Technical Specification

Frame	Pinarello Dogma F TorayCa T1100 1K Dream Carbon with Nanoalloy Technology, TiCR™ Cable Routing, Italian threaded bottom bracket, UCI approved, 142mm x 12mm thru-axle
Fork	Pinarello Dogma F Onda Fork with ForkFlap™, 1.5' upper and lower steerer, 100 x 12mm thru-axle
Headset	Pinarello with ultra-light bearings
Bottom Bracket	Shimano Dura-Ace SM-BB9200
Integrated Handlebar and Stem	MOST Talon Ultra Fast
Bar Tape	MOST ULTRAGRIP evo 3mm, Black
Front Brake	Shimano Dura-Ace BR-R9200, 2 pistons caliper hydraulic, with 160mm rotor
Rear Brake	Shimano Dura-Ace BR-R9200, 2 pistons caliper hydraulic, with 160mm rotor
Brake Levers	Shimano Dura-Ace BR-R9200
Front Derailleur	Shimano Dura-Ace Di2 FD-9200 12-speed
Rear Derailleur	Shimano Dura-Ace Di2 RD-9200 12-speed
Shift Levers	Shimano Dura-Ace Di2 FD-9200 12-speed
Chain	Shimano Dura-Ace 12-speed
Cassette	Shimano Dura-Ace, 11-30t, 12-speed,
Crankset	Shimano Dura-Ace FC-R9200, HollowTech 2, 52/36t 12-speed
Front Wheel	Fulcrum SPEED Lite C40, 40mm deep full carbon rim, 700c, disc brake, tubeless-ready
Rear Wheel	Fulcrum SPEED Lite C40, 40mm deep full carbon rim, 700c, disc brake, tubeless-ready
Front Tyre	Pirelli P ZERO Race, 700x26mm, black 127 tpi, Aramid breaker, tubeless-ready
Rear Tyre	Pirelli P ZERO Race, 700x26mm, black 127 tpi, Aramid breaker, tubeless-ready
Saddle	MOST Linx Ultrafast Superflow L Carbon, Large 145mm width
Seatpost	Pinarello Aero Seatpost with 3D printed titanium top seat clamp and titanium bolts
